EDX - Electronic Data eXchange#

General#

EDX - Electronic Data eXchange stands for the document exchange module of KUMAVISION 365. EDI documents are sent in different formats, e.g. EDIFACT, VDA, OpenTrans etc.. A converter handles the conversion from the external format to the EDX internal XML format.

EDX then processes the converted messages and imports them into Microsoft Dynamics 365 Business Central. Required message acknowledgements are automatically sent within the internal document exchange. In the case of external EDI (electronic data interchange), message acknowledgement must be coordinated with the EDI service provider.

Incoming messages are validated by the EDX module. This means that the message content is loaded into the EDX document and checked for correctness, discrepancies and completeness. The user can manually correct the data in the EDX document and subsequently create the associated Business Central document.

For incoming messages, mapping is often required between the external item units and those stored in Business Central. For this purpose, the EDX module provides appropriate mapping tables.

The following diagram should clarify which task EDX takes over in the electronic document exchange:

Area Description
1st communication In this area the communication of the data exchange parties takes place.

For the transmission different protocols are used. The transmission protocols are usually specified by the data sender. Automotive, for example, uses the OFTP2 protocol. The trade sector tends to use X.400 or AS2.

It is not always necessary to use a service provider for document exchange. For X.400 transmission, for example, FileWork from Telekom can be used. However, if the OFTP½ protocol is required, then it makes sense to delegate the task of document exchange to a service provider
Message converter The incoming messages are converted from the source format to the EDX target format using a converter. For example, EDIFACT messages are converted to EDX in-house format. For outgoing messages, the message is converted from the EDX in-house format to the respective target format.
EDX Inhouse Format The Inhouse Format maps the documents of the Business Central business processes in a defined format. EDX uses the XML format for this purpose. The documents are described in the "KUMAVISION EDI Guideline".
4. EDX Business Logic In this area the previously converted documents are transferred into intermediate documents. With the "Business Logic" all relevant process steps are served, which are necessary for the examination of the document, creation as well as processing of the Business Central document. If it is possible by the document, an automation of the business process takes place.

Business processes#

The EDX module enables internal as well as external document exchange. Microsoft Dynamics 365 Business Central1 documents can be exchanged within a group of companies as well as with external EDI partners.

Internal document exchange#

If there is a hierarchical company structure with several companies, then the document exchange can be implemented with the EDX module. Here, the documents of the individual companies can be exchanged among each other.

Prerequisites for the internal document exchange:

  • Main company and companies are in one database
    In this case, the internal document exchange can be set up directly with the wizard.

  • Main company and companies are in separate databases
    In this case, document exchange must be set up manually.

  • There is a common network structure and all participants can access a shared network path.

The following figure shows the document flow between customer and supplier in conjunction with the EDX module:

Main Company = Customer
Company = Supplier

External document exchange#

If documents are sent to an external partner (EDI) this is described below as external document exchange.

The external document exchange contains message types that have been developed for use with EDI service providers. The EDI service provider receives the EDX messages, transforms them into the target format and transmits the messages to the recipient.

It is not mandatory to use an EDI service provider. Depending on the requirements, the transformation and transmission can also be implemented as an in-house solution with appropriate middleware.

Available vouchers#

The following documents are already available in XML format after installation:

Purchase

  • Order outgoing
  • Order change outgoing
  • Order confirmation incoming
  • Incoming purchase delivery
  • Incoming purchase invoice
  • Purchasing complaint outgoing

Sale

  • Sales order received
  • Sales order change received
  • Order confirmation outgoing
  • Sales quotation outgoing
  • Delivery bill outgoing
  • Sales invoice outgoing
  • Sales credit note outgoing
  • Sales complaint outgoing

Subsequent changes to purchase order / sales order#

If a purchase order has already been sent via EDI and an order line is no longer required, this line must not be deleted. In this case, the quantity of the line is set to 0 and an order change is sent. This procedure can also be used if an ordered item is to be exchanged for another item. As described above, the quantity of the original item is set to 0. A new order line is created for the new item.

If a sales order line has been received via EDI and the item cannot be delivered, the quantity of the line must be set to 0. The line should not be deleted here either.

Establishment#

The module has numerous configuration and customization options, which will be explained in more detail in the following sections. The first part of the documentation covers all topics concerning administration and configuration. The second part describes the operation of the data exchange.

Entitlement rates#

Via the installation of the EDX Apps, different authorization sets are automatically integrated in your Business Central application. Assigning these permission sets to your users or user groups ensures that the respective users have access to the connection and can execute the functions depending on the assigned set.

Authorization set Description
EDX ALL Permissions to read the EDX setup.

This role must be assigned to the users.
EDX SETUP Permissions to read, write, modify as well as delete records for all EDX tables.

This permission set allows EDX setup as well as access to all EDX objects.

This role must be assigned to the Microsoft Dynamics 365 Business Central1 Administrator as well as the task queue user.
EDX SALES Permissions to read, write as well as modify records related to the sales business process.

This role must be assigned to the sales users.
EDX PURCHASE Permissions to read, write as well as modify records which are related to the business process purchasing.

This role must be assigned to users from the purchasing area.

Roll Center#

The EDX Role Center represents the central work platform for the entire EDX module. All necessary information regarding documents (incoming/outgoing), items (incoming/outgoing) and configurations are displayed with corresponding stacks in the role center.

Incoming and outgoing documents are displayed as links in the Purchasing, Sales and Logistics overviews, indicating the number of each. Clicking on the link opens the relevant document or an overview of the documents. It is therefore possible to navigate from the role center to all EDX relevant documents.

Furthermore, all settings as well as error entries and system messages are displayed in additional overviews.

EDX Setup#

In the EDX Setup, settings can be made that are valid for the entire module. The EDX Setup can be called up via the Facilities and extensions > Service connections > KVSEDX Setup start page.

In the register Interface directory the directories for documents, test as well as the productive have to be defined.

Further entries are not necessary for the time being, since these are made with the EDX Setup Wizard. Further information can be found in the section of the same name.

For completeness, all fields of the EDX setup are explained in more detail below.

Inforegister General#

field Description
Test environment This flag controls whether the messages are processed in the subdirectory for the production or test database.
see "Inforegister interface-directory"
database name name of the current SQL database

Inforegister interface directory#

field Description
Document directory (UNC) Base directory for electronic document exchange.
The path must refer to a network share and be written according to UNC notation. Example: \server name\EDX
Subdirectory Test Environment Subdirectory for Test Environment.
Subdirectory productive environment Subdirectory for productive environment.

Inforegister Azure Storage#

field Description
Storage Account Name Name of the created Azure storage account.
See Azure Environment: All Resources-> Storage Account
Shared Access Key Access key for the storage account
After selecting the storage account in the Azure environment, the access key (key1) can be retrieved and copied to the Shared Access Key field.
Container Name of the blob container in the storage account.
Azure subdirectory Prod Subdirectory for productive data.
Azure subdirectory Test Subdirectory for test data.
Activated When activated, the Azure Storage interface is registered as a service connection and can be used.
File Share Name of the Azure file share.

The Azure service connection is registered when the setup dialog is closed. Before the Azure Connection Test action can be executed, the setup dialog must be closed and reopened.

After that, the Azure Connection Test action can be executed.

Depending on the setup, either the connection to the Azure Storage Container or to the Azure File Share can be tested.

The following actions are performed during the test:

  • Create Readme.txt file in the container.
  • List files in the container
  • Read in file "Readme.txt
  • Delete file "Readme.txt".

Information register partner#

field Description
Extension Vendor EDX Partner Code

Extension Customer EDX Partner Code
Within the EDX module the EDI partners are created based on a customer or vendor. The partner codes are composed of the respective Microsoft Dynamics 365 Business Central1 vendor or customer number and the extension specified here

Example:
Creating an EDX partner based on vendor 1000. The EDX partner is managed as V1000.

The extension codes are freely selectable. Both extension codes must be filled in
.

Inforegister numbering#

All incoming EDX documents are first stored in EDX intermediate tables. For these EDX documents number series are necessary. If the EDX module is used exclusively for outgoing documents, then the specification of number series is not necessary.

Field Description
EDX Order Number Incoming order from customer.
EDX Order Change Number Incoming order change from customer.
EDX Purchase delivery number Incoming sales delivery from supplier.
EDX Purchase Invoice Number Incoming sales invoice from vendor.
EDX Order Confirmation Number Incoming order confirmation from supplier.

Information register web service#

field Description
Log incoming web service data Specifies logging of incoming web service calls. Logging takes place in the EDX inbox.
Log outbound web service data Specifies logging of outbound web service calls. Logging takes place in the EDX outbound.

Inforegister error handling#

field Description
The parameter "Time period until e-mail is sent" can be used to control the time period for which the errors are collected. Only after this time span has expired, the mail dispatch of all occurred errors takes place.
Error mail address Mail address to which error messages are sent. Only error messages are sent, which occur within the server processing.
The following list shows a few examples of when error mails are sent automatically:

An error occurs when reading an XML file.
Possible error causes:
- General errors within the XML file (Wellformed)
- The XML file does not match the expected schema

An error occurred during automatic further processing "Receiving a sales order".
Possible causes of error:
- Within the sales order, a reference is made to a Business Central master data record (e.g. article number, article unit) which does not exist.
- When the sales order is created, queries are made which must be confirmed by the user (e.g. credit limit). These queries are not allowed in a background process.

An error occurs when sending an XML file.
Possible error causes:
- No permission to write the outbound directory.

In the error mail, a link to call the related Business Central Page is provided. For further information, please refer to the section "Setting up e-mail dispatch".

Inforegister XML#

field Description
Disable XML Byte Order Mark This switch can be used to control whether the XML message to be output should contain the byte order mark.

Inforegister GS1#

field Description
Weight Unit code A unit code is required for the weight within the GS1 messages. As the weight is specified in Microsoft Dynamics 365 Business Central1 without a unit, the unit code can be defined in this field.
Volume Unit code A unit code is required for the volume within the GS1 messages. As the volume is specified in Microsoft Dynamics 365 Business Central1 without a unit, the unit code can be defined in this field.

Inforegister Reorganization#

field Description
The date formula in the "Archive outputs/inputs that are older" fields can be used to specify the date from which EDX inputs/outputs will be moved to the archive. Only outgoing items for which no transmission error has occurred will be moved to the archive.
Outgoing items with transmission errors can be manually moved to the archive using the Archive outgoing items with transmission errors action.

For inbound items, only completed acknowledgement messages are moved to the archive. The archiving of other input messages, such as EDX sales orders is controlled via the respective EDX document.

Inforegister BC Configuration#

field Description
Job Queue V3 Indicates that the new version of the EDX task queue is being used. With version 3.0, tasks can be executed at one-second intervals. In addition, transactions such as message receipt, document creation and dispatch take place directly one after the other, which minimizes delays.
Task queue items in seconds interval As soon as the switch is active, all EDX task queue items except for the parameters "Reorganization" and "Send Mail" will be executed in seconds interval.
Use interval for incoming/outgoing messages Specifies that the interval in the message setup is also used for sending or receiving messages.

If the switch is activated, incoming and outgoing message setups are executed when the "Earliest start date" according to the message setup has been reached. Further information can be found in the section "Message facility - Information register processing".

Inforegister Facility Overview#

The fields on the Setup Overview info tab give an overview of which items are already set up in EDX.

EDX Setup Wizard#

To make the setup of the connection as comfortable as possible for users, a setup wizard has been developed to guide you through the individual steps. This setup wizard can be called up via the EDX Setup menu ribbon (More Options > Action > Setup > EDX Setup Wizard).

Furthermore, the EDX Setup Wizard can also be started via the "Supported Setup".

The EDX setup wizard is started.

During the first EDX configuration, the "Communication" function should be started.

With the selection "Communication" the parameters for the file transfer (OnPrem) as well as the parameters for the Azure Storage can be entered.

The General selection is used to create the message types as well as number series for incoming messages.

If you want to send purchase orders, delivery bills or invoices to another client, then select the Internal document exchange function. For more information, see the "Internal document exchange" setup section.

EDX Document types#

When installed, the EDX module already has some message types which can be used for internal and external document exchange.

Establishment#

The EDX message types are created with the action "EDX Setup Wizard" within the EDX setup.

You can view the "EDX message types" using the call of the same name via the user search. The individual fields are explained in more detail below:

Field Description
Document Name of the EDX message.
Description Description of the EDX message.
Document Direction Inbound/Outbound Message.
GS1 Business Message Standard Indicates if this is a GS1 Business Message Standard message.
Intercompany Role Role of the document within the intercompany message exchange (customer/vendor).
Processing order Default value for the processing order.

This ensures that a purchase order confirmation is processed before the purchase delivery.
Field setting active Default value for the field setting.

If the message supports the field setting, then the field setting can be called after the message has been assigned to an EDX partner.
Collective mail allowed Default value for collective mail.See "Processing".
Include PDF allowed Indicates to include the associated Business Central PDF document as a base64 string in the message.
Message Encoding Sets the message encoding.
Web Service Function The EDX message can be accessed via SOAP web service.
Webservice Function Name Name of the associated webservice function.

Distribution of EDX document types#

All EDX message types have a prefix with which an area assignment can be made.

The areas are subdivided as follows:

Area Description
IC Internal message exchange.
GS1 GS1 Message.
CC External message exchange.
Documents reconciled with Clearing Center.
These messages are used from EDX version >= 10 for external message exchange.

See also KUMA EDI Guideline.
PEPPOL BIS 3.0 PEPPOL Business Interoperability Specification (BIS) 3.0.

EDX provides the standard Microsoft Dynamics 365 Business Central1 messages for PEPPOL BIS 3.0. Adjustments to these messages are only.
Message Description Message direction

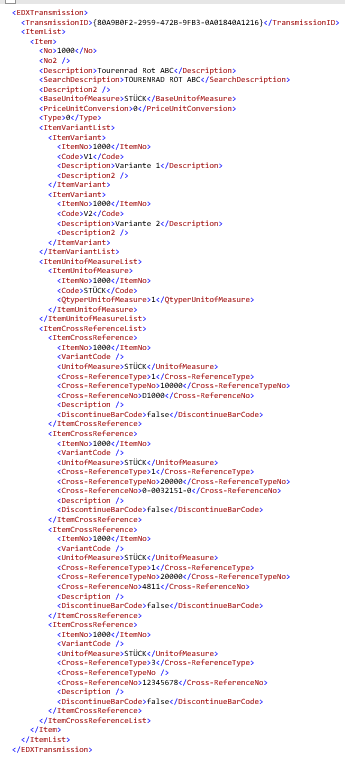

BASE CUSTOMER Basis Debitor Export Starting from
BASE ITEM Basic Item Export Starting from
BASE VENDOR Basis Vendor Export Starting from
CC PURCHASE ORDER Send purchase order Starting from
CC PURCHASE ORDER CHANGE Send purchase order change Starting from
CC PURCHASE RETURN ORDER Send purchase complaint (CC) Starting from
CC PURCHASE RETURN ORDER CHG Send purchase complaint change (CC) Starting from
CC PURCHASE INVOICE Receive purchase invoice (CC) Incoming
CC PURCHASE RECEIPT Receive purchase delivery (CC) Incoming
CC PURCHASE ORDER CONF Receive purchase order confirmation (CC) Incoming
CC SALES INVOICE Send sales invoice (CC) Starting from
CC SALES ORDER Receive sales order (CC) Incoming
CC SALES ORDER CHG Receive sales order change (CC) Incoming
CC SALES ORDER CONF Send order confirmation (CC) Starting from
CC SALES SHIPMENT Send sales delivery (CC) Starting from
CC DESPATCH ADVISE Send sales delivery (CC)
This message can only be used in conjunction with the "KUMAVISION Dispatch processing". The message contains the assigned load carriers and their hierarchy.
Starting from
CC SALES CR.MEMO Send sales credit memo (CC) Starting from
CC SALES RETURN ORDER Send sales complaint (CC) Starting from
CC SALES RETURN ORDER CHG Send sales complaint change (CC) Starting from
CC SERVICE INVOICE Send service invoice (CC) Starting from
CC SERVICE CR.MEMO Send service credit note (CC) Starting from
CONFIRMATION RECEIVE Receive confirmation of receipt Incoming
CONFIRMATION SEND Send confirmation of receipt Starting from
GS1 APP REC ACK IMP Receive confirmation of receipt

EDI application recommendation GS1 XML 3.4.1. Application Receipt Acknowledgement
Incoming
GS1 APP REC ACK IMP Receive confirmation of receipt

EDI application recommendation GS1 XML 3.4.1. Application Receipt Acknowledgement
Starting from
GS1 SALES CRMEMO EXP Send sales credit note

EDI application recommendation GS1 XML 3.4.1. Invoice
Starting from
GS1 PURCHASE CRMEMO EXP Send purchase credit

EDI application recommendation GS1 XML 3.4.1. Invoice
Incoming
GS1 SALES DESADV EXP Send sales delivery

EDI application recommendation GS1 XML 3.4.1. Despatch Advice
Starting from
GS1 PURCHASE DESADV IMP Receive purchase delivery

EDI application recommendation GS1 XML 3.4.1. Despatch Advice
Incoming
GS1 SALES INVOIC EXP Send sales invoice

EDI application recommendation GS1 XML 3.4.1. Invoice
Starting from
GS1 PURCHASE INVOIC IMP Receive purchase invoice

EDI application recommendation GS1 XML 3.4.1. Invoice
Incoming
GS1 PURCHASE ORDCHG EXP Send purchase order change

EDI application recommendation GS1 XML 3.4.1. Order
Starting from
GS1 SALES ORDCHG IMP Receive sales order change

EDI application recommendation GS1 XML 3.4.1. Order
Incoming
GS1 PURCHASE ORDER EXP Send purchase order

EDI application recommendation GS1 XML 3.4.1. Order
Starting from
GS1 SALES ORDER IMP Receive sales order

EDI application recommendation GS1 XML 3.4.1. Order
Incoming
GS1 SALES ORDRSP EXP Send sales order confirmation

EDI application recommendation GS1 XML 3.4.1. Order Response
Starting from
GS1 PURCHASE ORDRSP IMP Receive purchase order confirmation

EDI application recommendation GS1 XML 3.4.1. Order Response
Incoming
GS1 SERVICE CRMEMO EXP Send service invoice

EDI application recommendation GS1 XML 3.4.1. Invoice
Starting from
GS1 SERVICE INVOIC EXP Send service credit note

EDI application recommendation GS1 XML 3.4.1. Invoice
Starting from
PEPPOL 3.0 SALES INVOICE EXP PEPPOL To 3.0 Verkaufsrechnung Starting from
PEPPOL 3.0 SALES CR.MEMO EXP PEPPOL To 3.0 Verkaufsgutschrift Starting from
PEPPOL 3.0 SERVICE INVOICE EXP PEPPOL To 3.0 Servicerechnung
PEPPOL 3.0 SERVICE CR.MEMO EXP PEPPOL To 3.0 Servicegutschrift
IC PURCHASE INVOICE Receive purchase invoice (IC) Incoming
IC PURCHASE ORDER Send purchase order to vendor (IC) Starting from
IC PURCHASE ORDER CHG Send order change (IC) Starting from
IC PURCHASE ORDER CONF Receive order confirmation (IC) Incoming
IC PURCHASE SHIPMENT Receive purchase delivery (IC) Incoming
IC SALES INVOICE Send sales invoice (IC) Starting from
IC SALES ORDER Receive sales order (IC) Incoming
IC SALES ORDER CHG Receive sales change (IC) Incoming
IC SALES ORDER CONF Send order confirmation (IC) Starting from
IC SALES SHIPMENT Send sales delivery (IC) Starting from
IC SALES DELFOR Receive delivery call-off (FACTORY only) Incoming

EDX Partner#

In order to be able to exchange documents, one or more partners must first be defined in the EDX module. These partners can be created based on existing accounts payable or accounts receivable.

EDX partners are managed under a code that consists of the respective Business Central vendor or customer number and a defined prefix.

Before creating the EDX partner, the field "Our account number" must be defined in the vendor/customer.

Example of "Our Account Number":
Vendor Role: For customer 1000, 61000 is entered in the "Our Account Number" field.
Role of Customer: For vendor 61000, 1000 is entered in the "Our account number" field.

Partner type debtor#

A new EDX partner is created directly from the partner overview. To do this, first call up the "EDX partner" via the user search.

With the action "Create customer" a new EDX partner is created on the basis of a customer.

For the EDIFACT UNB segment to be created, the fields: GLN, Data sender as well as Recipient Id. can be used for the EDIFACT UNB segment to be created.

The fields data sender and recipient ID are not subject to a format check. Accordingly an ODETTE-Id, DUNS-No etc. can be entered.

For the transmission of XInvoices to an EDI service provider the "Routing Id." is required. see "Coordination Office for IT Standards".

Basically all above mentioned fields have to be coordinated with the EDI service provider. The fields are transmitted within the CC messages invoice, credit bill as well as delivery bill in the element "Routing".

Units mapping#

A unit mapping is necessary to change the customer's unit code to your own unit code.

Example:
A customer orders 5 PCS, the unit code in Microsoft Dynamics 365 Business Central1 is Piece. In this case, a mapping must be created for the translation from PCS to Piece.

The unit mapping is accessed from the "EDX Partner Overview" via the ribbon.

It is not necessary to store a unit mapping for each EDX partner and article. As a rule, the unit "PCS" must be converted to the Business Central unit "Piece" for all EDX partners and articles.

The following sequence is used to determine the unit mapping:

  1. mapping with EDX partner, article and reference code search.
  2. mapping with article and reference code search
  3. search mapping with EDX partner and reference code
  4. mapping with reference code search

Unit mapping is used with the following documents:

  • Sales orders
  • Sales order changes
  • Purchase order confirmations
  • Purchasing deliveries
  • Purchasing invoices

For outgoing documents, unit mapping is only performed in the "Clearing Center Messages".

  • born sales delivery
  • born sales invoice
  • purchase order
  • order confirmation

Additions/Detractions Mapping#

In EDX additions/deductions mapping, additions and deductions can be assigned to articles, resources, G/L accounts and fields in the document header.

Examples:

  • G/L account for surcharge advertising costs
  • Item as freight costs
  • Amount incl. VAT field from the sales header as an insurance surcharge.

Only fields from the sales header can be used. Amounts and percentages can be specified. These two fields are disabled for lines surcharges/discounts. The field "Position" is filled automatically and is only an information for the user.

The addition and deduction codes are selected from a separate table.

The surcharge/deduction mapping is only used for external outgoing document dispatch with Clearing Center. This includes the following documents:

  • Order Confirmation
  • Posted sales invoice
  • Posted sales credit memo

Service GTIN Mapping#

With the "EDX Service GTIN Mapping" resources, G/L accounts etc. can be provided with a GTIN. The stored GTIN is sent within the service invoice as well as credit note.

GTIN/Reference Mapping#

The GTIN/reference mapping can be used to assign a GTIN to resources, G/L accounts, etc.

The selection of the business relationship determines whether the mapping is used for purchase or sales messages. A reference can also be entered in the mapping. This is necessary if the resource does not have a GTIN but the message recipient has defined a different code for the resource.

Example:

Business relationship Relationship no. Typ No. GTIN Referenz-No.
customers 30000 Resource LIFT H58
customers 30000 Surcharge/discount (item) V-DISCOUNT E-DISCOUNT
vendor 30000 Resource H58 LIFT
vendor 30000 Surcharge/discount (item) E-DISCOUNT V-DISCOUNT

For outgoing messages for customer 30000, the resource LIFT with the reference no. H58 to the message recipient. The surcharge/discount V-RABATT is reported with the reference E-RABATT.

GTIN/reference mapping is supported for EDX GS1 messages and for Clearing Center messages for service invoices and credit notes.

GTIN14#

With the introduction of EDX GS1 messages, a 14-digit GTIN is supported.

Further information can be found at: GTIN (Global Trade Item Number).

EDX Occupancy device#

Different message types can be defined for each EDX partner. With the "EDX message setup" the documents are assigned to the EDX partner as well as configured.

Via "New" an EDX message is assigned to a previously created EDX partner. In the following, the fields of the EDX message card will be explained in more detail.

Inforegister General#

field Description
Partner No. Selection of EDX partner.
Only active EDX partners can be selected.
EDX Message Selection of the EDX Message.
By default, the following messages are included:
- Order outgoing
- Order confirmation incoming
- Order change outgoing
- Sales order incoming
- Sales order change incoming
- Order confirmation outgoing
- Delivery bill outgoing
- Sales invoice outgoing
EDX Message Description A freely selectable description can be entered here. This is for information only
EDX Message Direction Indicates the direction of the message (incoming or outgoing).
EDX transmission from Microsoft Dynamics 365 Business Central1 documents are received or sent from the date specified here.
Receipt Confirmation Check Receipt confirmation check can be used to control whether a message confirmation should be requested.

Example:
Sending a purchase order with receipt confirmation check.

Upon receipt of the purchase order on the receiving end, a receipt confirmation is sent to the message sender. The EDX status within the purchase order will automatically change to "Recipient Received". After the Business Centrals sales order is created at the recipient's end, another acknowledgement is sent. The EDX status within the order automatically changes to "Recipient accepted".

If the recipient rejects the EDX sales order, then an acknowledgement is also sent. The EDX status in the sent order will change to "EDX Rejected".

Acknowledgement check should be enabled on outgoing as well as incoming message.

Outgoing acknowledgement messages e.g. for receiving an EDX sales order will now be sent via EDX outgoing.
The "Source record" field now always refers to the associated document. The acknowledgement check is now supported by all EDX messages, sales deliveries, sales invoices as well as sales credit notes.

In case of external EDI, the acknowledgement messages may have to be coordinated with the EDI service provider.
Test Indicator Identifies the incoming or outgoing messages as a test message
See section Productive/Test Database.

Inforegister transfer#

Field Description
EDX transmission type Intercompany
If both clients are in one database, the transmission type "Intercompany" can be used.
The EDX Intercompany setup must be carried out via the EDX setup wizard.

API V2.0 Intercompany
Prerequisite: see section "OAuth setup".
If both clients are in different SaaS databases, the "API V2.0 Intercompany" transfer type can be selected. The EDX Intercompany setup must be done via the EDX setup wizard.

Azure Storage
Prerequisite: Set up an Azure storage and container. See section "Inforegister Azure forwarding"

All messages are stored or retrieved on the specified Azure Storage container.
This transfer type can be used in the following scenario:
Messages are to be stored on an FTP or SFTP server for the interface operator.
An Azure Logic App must be created in the customer project.
The Azure Connector "FTP" is used for message transfer within the Azure Logic App.

Note:
The Azure Logic App is not part of the EDX module.

Azure Fileshare
Prerequisite: Set up an Azure storage and fileshare.

All messages are stored or retrieved on the specified Azure fileshare.

This transfer type can be used in the following scenario:
Messages are to be stored in the file system of the interface operator. A Powershell script is made available to the interface operator for the Azure fileshare set up. The interface operator can use this script to integrate the Azure fileshare as a network drive in their infrastructure.

Null
Prerequisite: none

Outgoing messages:
The "Null" communication interface marks outgoing messages as sent. A transmission does not take place.
The outgoing message can be downloaded with the "Download message" action.

Incoming messages:
No processing. Incoming messages can be imported in the EDX inbox with the "Upload message" action.

This transmission type can be used in the following scenarios:

The interface operator sends the messages directly to the EDX inbox via the "EDX API Inbound" web service.

In this case, the associated EDX message must be assigned to the EDX partner with the "Null" transmission type.

The incoming/outgoing EDX messages should already be tested, although the communication parameters have not yet been determined.

E-mail
Prerequisite: Set up an e-mail account in Microsoft Dynamics 365 Business Central1.

The messages are sent as an attachment to an e-mail.

This transmission type can be used in the following scenarios:

A supplier would like to receive the Microsoft Dynamics 365 Business Central1 article, purchase order, etc. as an xml message attached to an email.

Note:
Additional transmission types can be implemented in the customer project. It makes sense to extend the transmission type if the interface operator provides web services for receiving messages, for example. Messages from the interface operator to Microsoft Dynamics 365 Business Central1 can be sent to the "EDX API Inbound".

Inforegister Azure / File Transfer#

field Description
EDX file path Input/output path for files.
In this field either an absolute or dynamic path can be entered. The dynamic path is stored with the placeholder %ROOT_DIR%.

This placeholder is exchanged at runtime for the base directory from the EDX setup.

Thus, when moving a directory share, it is sufficient to change the new directory in the "Directory Documents (UNC)" field within the EDX setup.

In the above example, %ROOT_DIR% is exchanged for \kvsdodc01\temp\EDX\Test10\Prod\.

Once the "Test Environment" switch is enabled, the following directory applies to %ROOT_DIR% \\kvsdodc01\temp\EDX\Test10\Test\

The same rules apply to the placeholder %AZURE_CONTAINER%
In this case, the Azure container set up is used.

Inforegister Azure Forwarding#

The forwarding parameters are sent to an Azure Logic App or Power Automate.

The Azure Logic App is not part of EDX. A corresponding "Azure Logic App" or "Power Automate" must be created in the customer project to process the parameters listed below. For the creation of the "Azure Logic App" the template "EDX_Outbound_Message" can be used.

When using the forwarding parameters, the GS1 messages "GS1 APP REC ACK IMP" as well as "GS1 APP REC ACK EXP" must be assigned to the EDX partner.

Field Description
Forwarding type This parameter can be used within the Logic App to decide which Azure Connector is used.
Forwarding ID Determines the EDI party.
Forwarding Destination Determines the destination of the message.

Example:
CC Invoice message is to be forwarded to EDI service provider EDI1 via SFTP. The message is to be placed on the destination FTP server in the /inbound directory.

Specify the following forwarding parameters:

field description
Forwarding type SFTP
Forwarding ID EDI1
Forwarding destination /inbound/

FTP information register#

No longer supported.

For FTP as well as SFTP transfer, an Azure Storage in connection with an Azure Logic App is required.

Inforegister e-mail#

field Description
Recipient Email Address Email address of the message recipient.
Email Subject Indicates the subject of the e-mail.
Email Text (HTML) Indicates the text of the e-mail.

Information register processing#

In this info register the processing parameters for the incoming as well as outgoing messages are defined.

Field Description
Automatic processing EDX incoming document:
The received EDX document is automatically checked. If there are no errors during the check, the Business Central document is created.

If an error occurs during the review or creation of the Business Central document, an error email is automatically sent.

This feature is currently available for EDX sales orders.
See section: "Automatic processing"

EDX Outbound Document:
So far, the following outbound documents can be sent automatically:

- Sales delivery
- Sales invoice
- Sales credit memo
- Purchase order
- Purchase order changes

See section: "Automatic processing".
Automatic processing steps This option can be used to specify which processing steps are to be carried out during automatic processing.

The following options are available:
• Check and process
• Check only

Note:
This option can only be selected for incoming EDX standard messages.
Processing order Specifies the processing order of incoming messages.
Do not add transmission ID If this option is enabled, the "EDX Transmission ID" element is not transferred to the XML file.

The EDX module basically assumes that the "TransmissionID" element is present in the incoming XML document. This element, for example, is used for document navigation within EDX.

If the incoming XML document does not contain the TransmissionID, then this is automatically added as the first element.

Note:
The setting of this switch should only be changed if described in the respective application documentation (customer project).
Invoice ignore zero Invoices with a value of 0 € will not be transferred if this option is enabled.

The setting of this switch should only be changed if it is described in the respective application documentation (customer project).
Ignore zero credit notes Credit notes with a value of 0 € will not be transferred if this option is enabled.
Automatic archiving Determines that the associated EDX receipt is archived after EDX receipt processing.
Direct Purchase Invoice Disabled:
When processing an incoming purchase invoice, the purchase delivery information is expected. Based on the purchase delivery number, the associated purchase order is determined.
The purchase delivery as well as the purchase order are then used for plausibility checks.

Switched On:
The EDX purchase invoice data is transferred directly to an unposted purchase invoice. Plausibility checks are performed with regard to the "purchase from vendor" as well as the articles.

Note
This option is not available with EDX Intercompany.
Include the associated PDF document In the case of outgoing messages for the Clearing Center, the associated PDF document can be included directly in the message. The PDF document is transmitted as a base64 encoded string.

If the created Business Central documents (sales delivery bill, sales invoice as well as sales credit bill) should not be sent immediately when posting, then a document collection can be activated with this option.

This option is currently used by the EDX documents: Sales Delivery (CC), Sales Invoice (CC), Sales Credit Memo (CC) supported.

The time for sending the document can be set by the processing time window.
Next list number When sending collective shipments, a list number is usually required. In the "Next list number" field, the list number can be specified which will be used for the next transmission.

Note:
Sales deliveries can be transmitted as collective consignments. There is no provision for assigning a list number.
In general, a forwarding order number must be transmitted within the delivery note message. This is currently not supported by the EDX CC delivery note message.
BC Release document This setting controls that a scanned document is automatically released after creation.
BC Post Document Determines whether an incoming EDX document should be posted or not.
Use Posting Date Specifies which date should be used for incoming EDX vouchers.

The following options are available:
- Posting date
- Current date
- Work date
- Incoming document date.
Show BC document Specifies whether the associated Microsoft Dynamics 365 Business Central1 document should be displayed after processing an incoming message.

User query
As before, a query is displayed asking whether the associated Microsoft Dynamics 365 Business Central1 document, e.g. sales order, should be displayed.

Display automatically
The associated Microsoft Dynamics 365 Business Central1 document, e.g. sales order, is displayed without a query.

Do not query/display
There is no query and the Microsoft Dynamics 365 Business Central1 document is not displayed.
Use article references Since in the rarest cases there is a consolidated article master between the partners, it is necessary to ensure a reliable assignment of the article numbers. The setting "Use article references" controls a check of the transmitted article number, as well as the transmitted reference number. The article/reference number check is based on the Microsoft Dynamics 365 Business Central1 article master > References.

When using this function, the following requirements are necessary:

- The partner must necessarily transmit the GTIN or reference number.
- The article references of the partner must be maintained in the article master.

When transmitting a GTIN, the Microsoft Dynamics 365 Business Central1 article is determined based on the GTIN field in the article master. If no matching article is found, then a search is performed using the article references with type "Barcode". With the article reference search the reported article unit is used.

If also this search should lead to no result, then the search takes place on the basis the article references with type "debtor" and/or "creditor". The reported article reference number from the message is used.
Use article unit mapping This setting controls an automatic mapping of the article units.

Example:
The EDX partner transmits for any article the article unit "PCS" which is managed in Microsoft Dynamics 365 Business Central1 as "Piece". If the corresponding mapping table is maintained and the "Article Unit Mapping" setting is maintained, the unit will be changed accordingly upon receipt.
.
EDX Automatic Archiving If an EDX document is processed, this setting can be used to control that the corresponding incoming item is archived.
Processing Time Window For outgoing documents, the processing time window controls when the document is sent. For incoming documents, the processing time window controls the review and creation time.

Example for outgoing sales invoices:
Sales invoices are to be collected by Saturday and sent at 10:00 p.m.
In this case, the "Execute Saturday" option is enabled in the processing time window. All other days will be disabled. The start time is set to 22:00 and the end time is set to 23:00. The earliest start date will be calculated automatically. Once the specified time window is reached, all invoices that have not yet been sent will be sent.

Incoming sales order example:
Sales orders should be processed automatically at 22:00 every day. In this case, every day will be activated in the processing time window. The start time is set to 22:00 and the end time is set to 23:00.

Note:
Once the specified time window is reached, all unprocessed EDX sales orders will be checked and created as Microsoft Dynamics 365 Microsoft Dynamics 365 Business Central1 order.
Intervall Specifies that incoming EDX intermediate documents are automatically processed at the interval specified here. Outgoing BC documents are also transferred to the EDX outbox at the interval specified here. If the "Use interval for incoming/outgoing messages" parameter is activated in the EDX setup, messages are also sent and received at the interval specified here.

Example:
No start/end time has been set. The weekdays from Monday to Friday are activated. Interval is set to 30 minutes. "Earliest start date/time" is empty or less than the current date/time. EDX processing is executed. After execution, "Earliest start date/time" is recalculated with the current date/time + interval.

Example:
Start/end time from 12:00 to 15:00. The weekdays from Monday to Friday are activated. Interval is set to 30 minutes. "Earliest start date/time" is empty or less than the current date/time. EDX processing is executed. After execution, "Earliest start date/time" is recalculated with the current date/time + interval. After the end time is exceeded, "Earliest start date/time" is recalculated with the current date/time + 1 day.

Info tab Advanced#

field description
Partner Type Indicates whether the displayed EDX partner is a customer or vendor.
Partner BC No. Displays the Microsoft Dynamics 365 Business Central1 customer or vendor no. depending on the "Partner type" field.
Message Type Displays the Microsoft Dynamics 365 Business Central1 message type associated with the EDX document setup.
Document Table No. Displays the Microsoft Dynamics 365 Business Central1 Table No. associated with the EDX Document Setup.
Object Type
Object ID
Indicates the XML port or code unit responsible for message processing.
Message Encoding Specifies the message encoding. This parameter has no effect on EDX standard messages. Within project specific messages this parameter can be used for the message encoding.
Webservice Function Specifies the message for use within internal webservice functions.
Webservice Function Name Sets the name of the internal webservice function.

Inforegister parameters#

Transmission type Parameter Description
Azure File Share These parameters can be used to override the Azure file share parameters from the EDX setup.

Example
1. In the EDX setup, the Azure storage account "PartnerA" and the file share "Transfer" is set up. No different parameters are entered on the selected message.

In this case, the message transfer is to the Azure storage account "PartnerA" / "Transfer".

2. As described in point 1, the Azure storage account as well as the fileshare is set up in the EDX setup.

For the selected message, the Azure storage account "PartnerB" and the fileshare "Interface" are specified via the parameters.

In this case, the message transfer will be to the Azure storage account "PartnerB" / "Interface".
AZURE_FILESHARE_ACCOUNT_NAME storage account name
AZURE_FILESHARE_ACCESS_KEY Storage account access key
AZURE_FILESHARE fileshare name
AZURE_FILESHARE_DIR_PROD Directory for Prod. environment
AZURE_FILESHARE_DIR_TEST directory for test environment

Function "Field settings document check "#

The function "Field settings for document check" in the ribbon defines which fields of the EDX document are checked or transferred to the Microsoft Dynamics 365 Business Central1 document.

Field Description
Validation sequence The data from the EDX intermediate document is transferred to the Microsoft Dynamics 365 Business Central1 document in accordance with the defined validation sequence.
Use default values The "Use default value" option can be used to pre-assign fields within the EDX document that are not contained in the message, for example.
Default value For example, you can set the due date in the sales header so that this field is always initialized with the working date. Constant values or placeholders can be used within the default value. When using a constant, care must be taken to ensure that the value is entered in XML format.

A fixed date must therefore be entered in the format YYYY-MM-DD. For decimal values, the dot must be used as a separator. The XML format was chosen to avoid translation errors in different languages. If employees set the date: 15.01.2023 as the default value and then English-speaking employees check the message, the default date cannot be converted.

The default values are initialized when the EDX document is checked.
List of placeholders:
%WORKDATE = Work date
%TIME = Current time
%TODAY = Current date
%COMPANYNAME = Client name
@Fieldname = Reference to another field in the current table
%CLEAR = Clear target field
This indicator controls whether the field content from the EDX document is to be checked and transferred to the Microsoft Dynamics 365 Business Central1 document.

Set up task queue item#

Automated message sending/receiving is done by setting up the task queue items. These are created using the EDX setup wizard. See "EDX Setup".

Process distribution within the task queue items#

The following task queue items are created using the EDX Wizard: CodeUnit: 5487951 EDX Job Queue

Parameter Description
INBOUND_TRANSMISSION Read data according to the specified transfer type (e.g. file transfer) and make it available in "EDX Inbox".
INBOUND_TO_EDX_DOCUMENT Process all EDX input items with status "Unprocessed".
INBOUND_POST_EDX_DOCUMENT Check all created EDX documents (sales order, purchase order confirmation, etc.) that have been configured with the "Automatic processing" flag and create the corresponding Microsoft Dynamics 365 Business Central1 document if necessary.
OUTBOUND_SEND_NAV_DOCUMENT All created Microsoft Dynamics 365 Business Central1 documents (sales delivery, sales invoice, etc.), which are configured with the "Automatic processing" flag, are transferred to the "EDX outbox".
OUTBOUND_TRANSMISSION Send all EDX outgoing items with status "Unprocessed" according to the defined transmission type.
SEND_MAIL Send processing errors by mail.
REORGANIZATION Archive the EDX outputs. Time of archiving is defined in EDX Setup.

GLN facility#

For the creation of an EDIFACT message, further GLNs are required in addition to the GLN (Global Location Number) in the customer. With EDIFACT the message recipient is transmitted in the UNB segment. The GLN of the message recipient can differ from the GLN of the customer.

According to EDIFACT GLN's are mapped in the following segments:

Message Segment Description Identifier
UNB Interchange Header (Message Sender/Receiver).

If the "Invoice to Customer" belongs to a federation, then GLN of the federation customer, otherwise GLN of the "Invoice to Customer".

Special case: The message receiver requires a GLN, which does not belong to the above master data. In this case the GLN of the EDX partner is used.
NAD Name and address data SU = Supplier
BY = Buyer
DP = Delivery address
IV = Invoice address

The GLN's are entered in the following Microsoft Dynamics 365 Business Central1 master data:

Message receiver (UNB)#

The GLN for the message recipient/sender (UNB) is entered directly at the EDX partner in the "GLN" field.

Debtor (NAD segment)#

The GLN for the customer (NAD segment) is entered directly on the customer card in the "GLN" field in the "Invoicing" info tab.

GLN of location#

Location for the delivery can be defined within a Microsoft Dynamics 365 Business Central1 purchase order. If this location has a different GLN to the company data, this GLN can be entered in location.

This setting only applies to EDX GS1 messages.

Delivery to address (NAD segment)#

The GLN for the delivery to address (NAD segment) is entered directly on the customer card > delivery to addresses in the field "GLN" in the info tab "General".

The transmission of the above mentioned GLN's is supported by the XMLPorts for EDI service providers (prefix CC).

Set up e-mail dispatch#

As described in the previous sections, EDX sends mails automatically if, for example, an error has occurred during processing.

The following items must be set up for sending mails:

SMTP mail setup#

An SMTP account must be set up via "E-mail accounts". With the action "New" the setup wizard is displayed. Then "SMTP" is selected. After completing the SMTP setup, the scenario "EDX" must be assigned to the created account.

BC Administration (Management Console)#

Mail is usually sent using the Microsoft Dynamics 365 Business Central1 instance JOBQUEUE01. Since this is a process without client service, it is necessary that the base URL is entered.

In the field "Windows Client Base URL" the URL of a Microsoft Dynamics 365 Business Central1 instance must be entered, where the option "Enable Client Services" is activated.

Example:
DynamicsNAV://srvnav:7246/NAVProd01/

This base URL is then used, for example, for the PageLinks within the error mail.

Internal document exchange#

Set up with the EDX Setup Wizard#

The internal document exchange can be set up completely via the EDX Setup Wizard if both clients are present in one database.

Note

Before starting the wizard, the EDX setup must be set up in both clients. Further information can be found under "EDX Setup".

Afterwards, the action "EDX Setup Wizard" can be started in the EDX Setup.

The setup for the internal document exchange can now be started with the action "EDX Setup Wizard".

After starting the wizard, the following parameters must be set:

  • Set the function of the wizard to "internal document exchange".
  • Set the role of the current client.
  • Selection of the communication interface.
  • Use purchase price as sales price.
    The price will be transferred from the sent purchase order to the sales order. (See Field Control)
  • Selection of the client with which messages are to be exchanged.
  • Assignment of customer as well as vendor according to the clients.

After executing the "Finish" action, the matching of the "Our account number" field between the customer and vendor takes place. In both clients, the required EDX partners and the related intercompany documents are assigned.

API V2.0 Intercompany#

As described above, the oAuth setup must be carried out in both databases.

Example:

Environment oAuth Code
DE DE2CH
CH CH2DE

Current environment DE: When setting up with the wizard, the value "DE2CH" is entered in the "Current database.OAuth code" field.

The value "CH2DE" is entered in the "Target database.OAuth code" field.

Manual setup#

If the clients exist in different databases, then the setup must be done manually.

The following messages have to be set up on the client side:

partner no. EDX document EDX document direction EDX document description partner type partner BC no. EDX transmission type
V10000 IC PURCHASE ORDER CHG Outgoing Send order change Vendor 10000 File transfer
V10000 IC PURCHASE ORDER CONF Outgoing Receive order confirmation Vendor 10000 File transfer
V10000 IC PURCHASE ORDER Outgoing Send order Vendor 10000 File transfer
V10000 IC PURCHASE SHIPMENT Outgoing Receive purchase delivery Vendor 10000 File transfer
V10000 IC PURCHASE INVOICE Incoming Receiving purchase invoice vendor 10000 file transmission
V10000 CONFIRMATION RECEIVE Incoming Acknowledgement Received Vendor 10000 File Transmission

The following messages are to be set up on the vendor side:

Partner No. EDX Document EDX Document Direction EDX Document Description Partner Type Partner BC No. EDX Transfer Type
C10000 IC SALES ORDER CONF Outgoing Sending order confirmation Customer 10000 File transmission
C10000 CONFIRMATION SEND Outgoing Message acknowledgement Customer 10000 File transfer
C10000 IC SALES ORDER Incoming Receipt of sales orders Customer 10000 File transfer
C10000 IC SALES ORDER CHG Incoming Receive order change customer 10000 File transfer
C10000 IC SALES SHIPMENT Outgoing Send Sales Delivery Customer 10000 File Transfer
C10000 IC SALES INVOICE Outgoing Send Sales Invoice Customer 10000 File Transfer

When setting up the intercompany documents manually, the EDX file paths must be configured manually.

In doing so, the outgoing message is configured first. The corresponding path must be stored temporarily. Afterwards the incoming message can be configured. Here, the path from the previously configured outgoing message must be used.

The message recipient and sender can thus communicate via the same directory.

Using the example "IC PURCHASE ORDER", the following steps must be carried out. The EDX basic setup must already have been carried out and partners must have been created. This procedure must be carried out for all incoming messages:

  • Open client "Customer".
  • Create EDX message setup for document "IC PURCHASE ORDER" and save path temporarily.
  • Switch to the "Supplier" client.
  • Create EDX message setup for document "IC SALES ORDER" and use the path of the outgoing document.

Oauth Setup#

If the intercompany setup is to be done via different SaaS databases, then the OAuth setup must be performed in both databases. For this purpose, the action "OAuth connections" is called in the EDX setup. Within the OAuth setup, the new connection is started with the action "New->Microsoft Dynamics 365 Business Central1 Connection". The setup wizard requires the following parameters from the Azure App registry:

  • Tenant Id
  • Client Id
  • Secret
  • Environment name

Shipping order / load carrier#

For the use of the outgoing message "CC DESPATCH ADVISE" (DESADV) the setup of the shipping orders including the load carriers is required.

The general information for setting up the shipping orders and load carriers can be found in the corresponding section "Shipping processing". In the following, you will only find notes on the relevant settings for the outbound message mentioned above.

Setup storage location#

In order for an assignment of the load carriers/packages in the shipping order to take place, the option "Shipping order" must be selected in the "Shipping processing" field in the storage location or must remain free.

Shipping order setup#

Via the menu item "Shipping and Load Carrier Setup" you set up your shipping orders. If you want to send load carriers with information on the NVE/SSCC, the fields "Company ID" must be filled with the base number (GLN) of the company, as well as "Load carrier ID numbers" with a number series. Instead of storing the number series here in general, these can also be stored specifically for individual load carriers. In addition, the option "Create check digit for carrier ID" must be activated so that the check digit specified by GS1 can be calculated and added for the NVE/SSCC.

Note

In the field "Company ID" a reserve digit (see GS1 specification) must be prefixed before the base number, so that a correct NVE/SSCC can be generated.

In order for a NVE/SSCC to be generated automatically, the option "Assign load carrier ID on order release" must also be activated.

The NVE/SSCC has a total length of 18 digits (see GS1 specification). Therefore, the combination of company ID with reserve digit, number series of the load carrier and check digit must be exactly 18 digits long. If this is not the case when a shipping order is released and the "Assign load carrier ID on order release" option is activated, a corresponding note appears.

Load carrier setup#

The required load carriers can be set up via the menu item "Load carrier". If load carriers including NVE/SSCC are to be transferred, the option "ID mandatory" should be set here. If no number series is stored in the "Load carrier ID number" field in the shipping order or if a different number is to be used for the respective load carrier, a previously created number series can be selected here.

Please note the information on the NVE/SSCC from the "Shipping order setup" section.

Create DESADV#

The outgoing message "CC DESPATCH ADVISE" is generated from a booked dispatch order with EDX partner.

So that a valid DESADV file can be created and, if necessary, processed further by an EDI converter, the following requirements must still be met when creating shipping orders:

  1. the shipping order must refer to a booked sales delivery, otherwise no valid EDX partner can be transferred to the booked shipping order.
  2. each line with packaging materials/cargo carriers must be assigned to at least one delivery line.

EDX Monitor#

The EDX Monitor is used to map the entire process associated with an incoming or outgoing message.

In the following example, an EDX sales order was received and a Microsoft Dynamics 365 Business Central1 sales order was created.

An EDX order confirmation was sent for the Microsoft Dynamics 365 Business Central1 sales order. The delivery and invoice were then posted and sent.

Display in the EDX Monitor:

Message-/Document Date Direction Source Record Partner No. Document Description Status Confirmation Reason
27.11.2023 11:45 Inbound Sales Invoice Header 103052 C10000 GS1 Application Receipt Acknowledgement Import EDX Document created Accepted
27.11.2023 11:45 Inbound Sales Shipment Header 102063 C10000 GS1 Application Receipt Acknowledgement Import EDX Document created Accepted
27.11.2023 11:40 Inbound Sales Invoice Header 103052 C10000 GS1 Application Receipt Acknowledgement Import EDX Document created Received
27.11.2023 11:40 Inbound Sales Shipment Header 102063 C10000 GS1 Application Receipt Acknowledgement Import EDX Document created Received
27.11.2023 09:46 Outbound Sales Invoice Header 103052 C10000 Verkaufsrechnung senden (IC) Transmitted Accepted
27.11.2023 09:46 Outbound Sales Shipment Header 102063 C10000 Verkaufslieferung senden (IC) Transmitted
24.11.2023 09:56 Inbound Sales Header Order, 1026 C10000 GS1 Application Receipt Acknowledgement Import EDX Document created Accepted
24.11.2023 09:54 Inbound Sales Header Order, 1026 C10000 GS1 Application Receipt Acknowledgement Import EDX Document created Received
24.11.2023 09:54 Outbound Sales Header Order, 1026 C10000 Auftragsbestätigung senden (IC) Transmitted Accepted
24.11.2023 09:54 Outbound EDX Sales Header Sales Order,00000037 C10000 GS1 Application Receipt Acknowledgement Export
24.11.2023 09:54 Inbound EDX Sales Header Sales Order,00000037 C10000 Verkaufsauftrag empfangen (IC) EDX Document created
24.11.2023 09:26 Outbound EDX Sales Header Sales Order, 00000037 C10000 GS1 Application Receipt Acknowledgement Export Transmitted Received

Incoming documents#

Incoming documents are first temporarily stored in EDX documents.

Data flow of an incoming document#

The incoming message is first read into the EDX inbox. The system creates an EDX inbox item and saves the message in the item.

Then the EDX intermediate document is created from the EDX inbound item. Within the EDX intermediate document, users can intervene and correct data. Furthermore, users can reject the EDX intermediate document if necessary or create a Microsoft Dynamics 365 Business Central1 document from it.

EDX input items#

All incoming documents are first stored in the EDX Inbox table. When the business process for this document is completely finished, the item is automatically transferred to the transferred to the "EDX Inbox Archive".

Field Description
EDX Status Indicates the current status.

Unprocessed
The document has been transferred to the EDX module and an EDX Inbound item has been formed. The item has not yet been sent.

Error
An error occurred while processing the item.
The "Error" field displays the number of errors that occurred.
Using the look-up of the "Error" field, the associated error items can be retrieved.

EDX Document Created
An EDX intermediate document was created from the incoming item.

BC Document Created
A Microsoft Dynamics 365 Business Central1 document was created from the EDX intermediate document created. The associated EDX inbound item has now been completed and will be moved to the "EDX Inbound Archive".
EDX Message If there are system messages for this item, they can be retrieved via the look-up.
EDX Error If there are processing errors for this item, they can be retrieved via the Look-Up button.
Action "Display file" This action displays the document contained in the item.
Action "Manual Processing" If an error has occurred during automatic inbound processing and this error has been corrected in the meantime, then the inbound item can be processed again using the action "Manual Processing". See section "EDX Edit and Reprocess Incoming Items".
Action "Archive processing errors The following conditions must be met for the action to archive an incoming item:

- The incoming item has a valid "Transfer GUID"
- An archiving period is entered in the EDX setup, section "Reorganization"

EDX Edit and reprocess incoming items#

The "View file" function can be used to download the XML message of the selected EDX input item and edit it if necessary. The "Save files" function downloads the XML message from all selected input items and saves it in a selected folder.

Note

Currently this action "Save file" is not available in the WebClient (.NET Framework).

The file must be stored with the action "Show file" and then save.

If an EDX inbox item runs into an error, for example because a field length in the EDX intermediate document is exceeded or the XML structure is incorrect, the XML message can be downloaded from the EDX inbox, edited and uploaded again for new processing.

Using the "Upload message" function, the XML message can be uploaded again to the document directory on the server.

After the successful upload, the message will be processed again.

Note

The new EDX input item does not appear immediately after calling the function, but only when the message has been retrieved again from the task queue.

Manual processing of an EDX document#

For the processing of EDX documents, a basic distinction is made between two cases.

Incoming EDX document, the Microsoft Dynamics 365 Business Central1 document has not yet been created.

Example:
A sales order is received. The corresponding Microsoft Dynamics 365 Business Central1 document has not yet been created. If the incoming EDX document is created, it results in a new Microsoft Dynamics 365 Business Central1 sales order.

Incoming EDX document, the Microsoft Dynamics 365 Business Central1 document already exists.

Example:
An incoming EDX order confirmation relates to an existing Microsoft Dynamics 365 Business Central1 purchase order.

Before a Microsoft Dynamics 365 Business Central1 document can be created from an incoming EDX intermediate document, the incoming EDX document must first be checked. After a successful check, the EDX document receives the status "Ready for creation". All EDX documents with this status can be transferred to a corresponding Microsoft Dynamics 365 Business Central1 document.

EDX Intermediate document#

The EDX intermediate documents contain partly identical fields as the Microsoft Dynamics 365 Business Central1 documents (see EDX sales order). Specific EDX fields and associated functionality are described below.

EDX messages/errors
. If there are any system messages or errors specific to this document, they can be retrieved via the Look-Up.

EDX Status

Status Description
Unprocessed The EDX document was created automatically. No further processing steps have been performed yet.
Error An error occurred during the processing of the document.
Ready to create The EDX document has been checked and can be created.
BC voucher created A Microsoft Dynamics 365 Business Central1 voucher has been created from the EDX voucher already created. This item is now done and will be moved to the "EDX Incoming Archive".
Unmatched data An existing Microsoft Dynamics 365 Business Central1 document already exists for the incoming EDX document.
Rejected The incoming document has been rejected.
Manual processing If it is not possible to create an incoming EDX document as a Microsoft Dynamics 365 Business Central1 document, it will be given the status "Manual processing".
Archived EDX documents that have already been archived.
Deleted EDX vouchers that have been deleted by users.

EDX Voucher Check#

During the verification, the system performs a validation of the data. In the process, the field contents are checked. The check of the field contents is based on the settings made in the message setup.

If errors are determined, the EDX document receives the status "Error". The number of errors that occurred is indicated in the "Error" field on the document header or lines. You can open related error items using the Look-Up button.

If errors are detected, then they can be corrected directly in the EDX document. Each field change in the EDX document is logged. By means of Lookup on the field "EDX Note" these changes can be called up.

After manual correction in the EDX document, the action "Check" must be executed again. After all errors have been corrected, the Microsoft Dynamics 365 Business Central1 document can be created using the "Create" action.

Processing of EDX documents with status "Inconsistent data"#

During the check, the data of the EDX document is compared with the data of the Microsoft Dynamics 365 Business Central1 document. This is the case, for example, with an incoming order change.

To avoid having to manually compare the existing Microsoft Dynamics 365 Business Central1 sales order with the EDX order change, EDX checks the discrepancies and displays them clearly.

If any discrepancies are found, the EDX status is set to "Inconsistent Data". Clicking on the lookup field "EDX Error" will display all discrepancies.

Example:
An order change for an item with a quantity increase from 20 pieces to 30 pieces has been received.

The EDX status is set to "Inconsistent Data."

By clicking on the EDX error number (line), a dialog is displayed in which the discrepancies are shown.

The selection "Apply changes" determines whether the displayed change is to be applied to the Microsoft Dynamics 365 Business Central1 document. The column "Value EDX" shows the currently transferred value. The column "Value BC" shows the current value of the Microsoft Dynamics 365 Business Central1 document.

Once it has been determined which changes are to be adopted, the "Accept changes" action must be executed.

Delete EDX document#

Deleting an EDX document depends on the status. If the EDX status contains one of the following values, deletion is not possible:

  • BC Document created
  • Rejected
  • Manual processing
  • Archived

If the document is not in this status, the EDX document can be deleted with the action "Delete EDX document".

After executing the action "Delete EDX document", a dialog box appears with a note that a deletion reason must be specified and whether you actually want to delete the document. This query must be confirmed with "Yes".

Subsequently, the reasons that led to the deletion of the message can be entered.

Create EDX document#

The "Create" action transfers the EDX intermediate document to the associated Microsoft Dynamics 365 Business Central1 document.

Reject EDX document#

It is possible to reject incoming EDX documents.

The rejection is sent to the message sender if the "Receipt confirmation check" field has been activated in the EDX message setup.

Rejection reasons must be recorded before completing the action.

EDX document with "Manual processing" status#

EDX documents with the status "manual processing" indicate that the EDX document cannot be created or confirmed as a Microsoft Dynamics 365 Business Central1 document. This may be due to the following reasons:

  • The existing document has already been delivered
  • Reservations exist
  • A unique assignment of the document is not possible
  • A unique assignment of the lines is not possible
  • There are discrepancies that cannot be processed automatically

Since these EDX documents cannot be processed by the system, further processing must be done by the user.

The EDX document is closed by archiving it.

Automatic processing#

Within the "EDX Message Setup" the "Automatic Processing" can be activated. The received document will be checked automatically. If there are no errors during the check, the Microsoft Dynamics 365 Business Central1 document is created.

Up to now, incoming sales orders are processed automatically.

Outgoing document#

Outgoing EDX documents are not transferred to an EDX intermediate document. When the EDX message is created, an EDX outgoing item is created directly.

EDX information#

Each outgoing document contains information which is required for the transmission. This information is displayed in the "EDX" info tab.

The fields of the info tab that are required for the transmission are explained in more detail below:

field description
EDX Document Yes
The document has been recognized as an EDX document by the document device. Transmission of the document is possible.

No
No document facility exists for the document. Transmission is not possible.
EDX Status Indicates the current status:

Unprocessed
The document has been transferred to the EDX module and can be sent.

Processed
The EDX outgoing item has already been created.

Sent
The EDX outgoing item has been sent.

Receiver received
The receiver can use a message acknowledgement to signal that the message has arrived in the target system.

Error
An error occurred during processing. This can be looked up in the EDX system error log.

Ignored
Documents with the status "Ignored" will not be sent.
The status "Ignored" will be set automatically if the following conditions are met:

If a sales invoice that has not yet been sent is cancelled, then both documents (invoice/credit note) will be set to the status "Ignored".

If a sales delivery that has not yet been shipped is cancelled by a complaint, then the status of the sales delivery is set to "Ignored".

Sales delivery, invoice as well as credit memo.
In the sales order it can be defined that certain documents should not be sent during the next posting.

If a posting number for delivery bill or invoice is reserved via the sales order and the sales order is deleted without using this posting number, then according to Microsoft Dynamics 365 Business Central1 standard a posted document is created with the note "deleted document". These documents will not be transferred.

Manual processing#

Send EDX document manually#

Manual document dispatch takes place directly from the associated Microsoft Dynamics 365 Business Central1 document with the action "Send EDX document".

EDX output items#

All sent documents are first saved in the "EDX Outbox" overview. When the process is complete, the system automatically transfers the item to the EDX Outbox Archive overview.

EDX Status Description
Unprocessed The document has been transferred to the EDX module. This item has not been sent yet
Error An error occurred while processing the item. Please refer to the "Error Log" field for details. If the error occurred due to insufficient file permissions, then the EDX document can be processed again after correcting the permissions. To do this, select the "Reprocess" action.
Sent The item has been sent to the partner. With the columns "Messages" as well as "Error" information about the outgoing item can be retrieved.
Actions Description
Display file This action displays the document contained in the item.
Display BC Document This action displays the Microsoft Dynamics 365 Business Central1 document contained in the item.
Display archived BC document Displays the archived document.

Automatic processing#

So far, the following outgoing documents can be sent automatically:

  • Sales delivery
    The dispatch takes place when posting.
  • Sales invoice
    The dispatch takes place when posting.
  • Purchase order
    Shipment takes place upon release.
  • Purchase order changes
    Shipping occurs when released. If the purchase order is released and has been previously sent via EDX, then the automatic dispatch of an order change takes place. There is currently no check for quantity or date change.

Automatic dispatch of Microsoft Dynamics 365 Business Central1 documents can be controlled within the EDX message facility.

The following conditions apply to the EDX message facility:

  • The EDX partner must be of type "Customer" or "Vendor".
  • The EDX "Transfer Date From" must be greater than or equal to the Work Date.

The following conditions apply to Microsoft Dynamics 365 Business Central1 documents: delivery bill, invoice as well as purchase order:

  • The "EDX Partner" field has a value.
  • The document date is greater than or equal to the "EDX Transmission from".
  • The "EDX Status" is "Unprocessed".

The following condition applies to the Microsoft Dynamics 365 Business Central1 delivery bill:

  • The "Sale to Customer" field must match the "BC Partner No." from the EDX message setup.

The following condition applies to the Microsoft Dynamics 365 Business Central1 Invoice:

  • The "Invoice to customer" field must match the "BC Partner No." from the EDX message setup.

Reset EDX status#

With the action "Reset EDX status" documents can be sent again.

Enhancements in "Internal document exchange#

Purchasing deliveries without goods receipt#

In the case of purchasing deliveries, it was previously always assumed that the storage location used was posted by goods receipt. The processing of purchase deliveries has been changed so that now also storage locations without goods receipt can be used. In this case, the field "Quantity current delivery" is initialized with the reported delivery quantity in the respective order line.

The document must be posted by the user.

Purchase deliveries with batch / serial number#

Batch/serial numbers are supported for purchase deliveries.

The batch/serial number to be delivered is entered in the sales order. The batch is then transferred to the recipient with the posted sales delivery.

The transmitted batches/serial numbers can be retrieved in the "EDX Purchase Delivery" with the line menu.

After checking/creating the EDX purchase delivery, the item tracking data is transferred to the purchase order.

After posting the purchase order, the item/batch is available in the storage location.

Additions/deductions in "internal document exchange"#

Surcharges/discounts can now be used in internal document exchange. The prerequisite is that the "Sales price without VAT" field is activated in the field control for the sales order received. Otherwise, the order line will be created without a sales price.

Item variants in "internal document exchange"#

The item variants are supported in the internal document exchange.

Order date in "internal document exchange#

When sending the order, the "planned goods receipt date" is transmitted from the purchase order. The further processing looks as follows:

Process Field Description
Send Purchase Order "Scheduled Goods Receipt Date" Send Date
Receive Sales Order "Desired Delivery Date" Validate "Planned Goods Receipt Date" from Purchase Order in "Desired Delivery Date" field.
The validation automatically calculates the "Planned Delivery Date", "Planned Goods Issue Date" and "Goods Issue Date" fields in the sales order.
Send order confirmation "Committed delivery date" as well as
"Planned delivery date"
Send date
Receive Purchase Confirmation "Committed Goods Receipt Date"
"Planned Goods Receipt Date"
Validate "Committed Delivery Date" from Order Confirmation to "Committed Goods Receipt Date" of Purchase Order

"Validate Planned Delivery Date" from Order Confirmation to "Planned Goods Receipt Date" of Purchase Order
Send order change "Planned date of receipt of goods" Send date
Receive order change "Desired delivery date" As for "Receive sales order"

Remark texts#

During internal document exchange, the "remarks" are transferred from the Microsoft Dynamics 365 Business Central1 order, header as well as line. On receipt, the remarks are stored in the EDX sales order.

Likewise, remarks can be reported back with the EDX Purchase Order Confirmation. In this case, remarks are stored in the EDX Purchase Order Confirmation.

Received remarks are not transferred to the Microsoft Dynamics 365 Business Central1 sales order or to the Microsoft Dynamics 365 Business Central1 purchase order. Otherwise, it would no longer be possible to distinguish between remarks entered by the user and remarks from the other party.

Receive delivery schedules#

In the internal document exchange, previously sent purchase orders/framework orders can be received as delivery schedules. The setup for sending purchase orders can be done as described above. On the receiver side the message "IC SALES DELFOR" is set up.

When a delivery schedule is received, a delivery schedule and a scheduling agreement are created for each purchase order/article.

This functionality is only available within KUMAVISION factory365.

Direct delivery#

When sending a purchase order with reference to a sales order (direct delivery) the data of the sales order will be transmitted as well.

On receipt, the data of the direct delivery is transferred to the EDX intermediate document for sales orders.

Further processing of this data must be implemented in the customer project.

Productive -/Test database#

When copying the production database to the test database, overlaps may occur in the interface directory area. Furthermore, it should be ensured that test messages do not get into the productive system.

The steps required to secure the production database are explained in more detail in the following sections.

Before the copy#

Before copying the production database to the test database, all task queue items (all clients) should be set to "Wait".

After copying the production database to the test database#

When the production database is copied to the test database, there is usually an overlap of the interface directories. The document directories in the production and test database are identical. This can lead to the fact that current EDI documents are not imported into the productive but into the test database.

For this case a security query was integrated, which is displayed when opening the test database.

If the query is answered with "Current database is the test database", the option "Test environment" is automatically activated in the EDX setup.

All clients with active EDX setup should be opened once after copying the database. Furthermore, the interface directories must be copied from the "Prod." subdirectory to "Test".

EDX voucher setup (FTP)#

FTP transfer is no longer supported. An Azure storage is required. The test and production path must be defined for this storage.

Task queue items#

Task queue items can now be reactivated in both databases.

Test indicator#

The "Test Indicator" is used to identify incoming and outgoing messages during the EDI test phase. For EDIFACT messages this indicator is contained in the UNB segment (Interchange Header). The message recipient can use this indicator to control whether the message is transferred to the production or test system.

However, this "Test Indicator" is not available in all message formats (VDA, OpenTrans etc.).

In the EDX message setup it can be set whether the message (order, delivery bill, invoice etc.) is a test message.

Effect of the test indicator on processing in Microsoft Dynamics 365 Business Central1:

Direction Description
Document received in BC:
Sales order
Sales order change
Purchase order confirmation
Purchase delivery
Purchase invoice
If the test indicator is enabled within the incoming message or in the message setup, then the EDX document will be marked as a test document.

This allows the test to be enabled for messages even if the original message (e.g. VDA) does not support the test indicator.

EDX documents with the test indicator enabled will only be processed automatically if the "Test Environment" option is enabled in EDX Setup at the same time. Otherwise, an error will be generated and sent by mail.
Document sent from BC The test indicator from the message setup is transferred to the outgoing document.

Receiving a sales order with test indicator
. The test indicator is transferred from the Microsoft Dynamics 365 Business Central1 sales order to the delivery as well as invoice. This means that if a Microsoft Dynamics 365 Business Central1 sales order was received as a test message, then the outgoing delivery/invoice messages will also be marked as a test message.

Azure FileSync#

Azure FileSync can be used to exchange files between networks. The synchronization between source and target directory can take up to several minutes.

If time-critical messages have to be exchanged, which is the case, for example, when messages are provided for a label printer, then the switch should be made to the "Azure Fileshare" file transfer.

EDX MasterDataExport#

EDX master data export can be used to export the following master data:

  • Item
    Subtables: Item variants, Item units as well as Item references.
  • Customer
    Subtables: Contacts
  • Vendor

Establishment#

The setup is done with the EDX setup.

EDX Setup#

At the beginning, the necessary setups are done via the setup wizard. This setup wizard can be called up via the EDX Setup menu ribbon ("More options" > "Action" > "Setup" > "EDX setup wizard"). The EDX setup wizard is started. Via the selection "General" the required document types as well as number series are created.

EDX Document types#

After setup via the setup wizard, the following document types are available:

Document Description Document direction
BASE CUSTOMER Basis debtor export Based on
BASE ITEM Base article export Based on
BASE VENDOR Base Vendor Export Based on
Setting up the document types#

For each EDX partner different voucher types can be defined. With the "EDX voucher setup" the previously created voucher types are assigned to the EDX partner as well as configured.

Field settings#

The "Field settings for document verification" function in the EDX document setup card ribbon allows you to configure which fields are to be exported from the associated master data table.

Field Description
Table name Specifies the table name for which the master data is to be transferred. For example, "Article" or a sub-table of the article, such as "Article variant".
Field name Specifies the respective field name for which the master data is to be transferred.
Validation sequence The validation order sets the element order in the XML output message.
Default value This option is not available for the master data export
Create field content Specify which fields will be exported.

Master data export#

The master data export takes place automatically as soon as a change is made to the master data record. Here, only field changes that were specified in the field settings are monitored.

Example:
The article description has been changed for an article. After the data record has been saved, the export takes place.

The output file contains the following elements:

Calculated fields#

Currently, only the calculated field "Stock" is provided. Calculated fields of the debtor or creditor are not provided by this AddOn, but can be implemented in the project.

Bulk data export#

At the beginning of a project, a function is usually needed to export all records of a table.

This can be controlled via the "Collective item" option within the document setup.

As soon as you activate the switch, all records of the table will be exported during the next data export. Afterwards, the "Collective export" option will be deactivated automatically.

EDX OpenTrans 1.0#

With the EDX AddOn OpenTrans 1.0 the following OpenTrans messages are provided:

  • DISPATCHNOTIFICATION (shipping notification)
  • INVOICE (Invoice)
  • ORDER (sell order)
  • ORDERRESPONSE (order confirmation)

Establishment#

The setup is done with the EDX setup.

EDX Setup#

At the beginning, the necessary setups are done via the setup wizard. This setup wizard can be called up via the EDX Setup ("More options" > "Action" > "Setup" > "EDX setup wizard") menu ribbon. The EDX Setup Wizard is started. Via the selection "General" the required message types as well as number series are created.

EDX Document types#

After setup via the setup wizard, the following message types are available:

Document Description Document direction
BASE CUSTOMER Base Customer Export Outgoing
BASE ITEM Basic Article Export Outgoing
BASE VENDOR Basic Vendor Export Outgoing
Setting up the document types#

The message types listed above are then assigned to an EDX partner.

Field settings#

The field setting is only available for the OpenTrans message "OT1.0 SALES ORDER". See "Document check field setting".

Processing#

The processing of OpenTrans 1.0 messages is done in EDX standard. Incoming sales orders are provided as "EDX sales order". The order confirmation can be created via the associated Microsoft Dynamics 365 Business Central1 sales order. The sales delivery as well as sales invoice can be sent manually or automatically.

GS1 Messages#

The existing EDX ClearingCenter (CC) messages largely meet the requirements for the retail industry.
Requirements from the electrical industry and the healthcare sector are only covered to a limited extent.

The GS1 Business Message Standard (BMS) includes requirements from the healthcare and electrical industries. Corresponding schema and sample messages are available for all GS1 BMS messages. The section "Distribution of EDX message types" lists the GS1 messages supported by EDX with a link to the respective guideline.

Further information on GS1 messages can be obtained directly from GS1 under the following link: GS1 XML

However, the use of the GS1 message format does not mean that new requirements for a business process are covered by GS1 messages.

Example:

A marketplace transmits an order to EDX using the GS1 ORDERS message. According to a marketplace rule, the Microsoft Dynamics 365 Business Central1 sales order may only be delivered once the marketplace has reported the release for delivery to EDX. In this case, an extension of the business process is required.

Note

The GS1 messages implemented in EDX contain all mandatory information and are validated against the respective xml schema. If optional information is required within the GS1 messages, an extension is necessary.

Within the GS1 invoice message, it is not intended that several deliveries are invoiced with one invoice line. However, if several deliveries are invoiced with one invoice line, the deliveries are mapped as additional data (see Attribute Value Pair List) in the GS1 message. This must be agreed with the EDI service provider/message recipient.

In principle, the GS1 messages only provide lines of the type "Article" for delivery, invoice lines, etc. All Microsoft Dynamics 365 Business Central1 line types are exported within the EDX GS1 messages. The respective line type is mapped in the additional data. This must be agreed with the EDI service provider/message recipient.

Technical description#

Default business document header#

  • All EDX GS1 messages have a standard business document header.
  • The Sender element is always initialized with the data from the company setup.
  • Depending on the business transaction (order, send sales invoice etc.) the Receiver element is initialized with the data of the "Purchase from vendor" or "Sale to customer".
  • The document identification is currently set to GS1 version 3.4.1.

Attribute value pair list#

The avp List is additional data that is sent for a GS1 xml element. Within the customer project, further additional data can be defined and extended with the avp List.

The following additional data is transmitted with the EDX GS1 messages:

Message Range Element
Attributname
Description
All Messages header invoice
base64, .pdf
In the EDX message setup, you can set that the associated PDF document can be sent with the message as a base64 character string. The table name depends on the respective message. When sending purchase orders, the table name is "Purchase Header". When sending an order confirmation, the table name is "Sales Header" etc.
Line TransactionalItemData
KVSEDX Qty. per Unit of Measure
Unit of Measure
lineItem
KVSEDX Line Type
Line-Typ

0=Text
1=G/L account
2=Item
3=Resource
4=WG/Anlage
5=Zu-/Abschlag (item)
9=Heading
10=From subtotal
11=End Intermediate/Bundle
12=Bundle,300=Cost
lineItem
KVSEDX Line No.
Line number assigned by EDX, e.g. if a purchase order is sent, the EDX line number may differ from the Microsoft Dynamics 365 Business Central1 line number. The EDX line number must be reported back with the order confirmation for synchronization with the Microsoft Dynamics 365 Business Central1 line.
lineItem
KVSEDX Position No.
Position number of the line.
ORDER lineItem
KVSEDX DSSO…
Additional data for orders with direct delivery / special orders.
INVOIC header invoice
KVSEDX Invoice List Total Amount
Total sum of all items on the invoice.
KVSEDX Invoice List Total Amount Including VAT Total sum of all items incl. VAT.
KVSEDX Invoice List Total VAT Amount Total amount of VAT for all items.
KVSEDX Invoice List Total Discount Amount Total sum of additions/deductions for all items
KVSEDX Invoice List Total VAT List of value-added tax rates used.
<?xml version="1.0" encoding="utf-8"?>
<TotalsVAT>'<br>'<VAT>
<Percent>19</Percent>
<Line_Amount>21500</Line_Amount>
<VAT_Amount>4085</VAT_Amount>
<Amount_Including_VAT>25585</Amount_Including_VAT>
</VAT>
<VAT>
<Percent>7</Percent>
<Line_Amount>900</Line_Amount>
<VAT_Amount>63</VAT_Amount>
<Amount_Including_VAT>963</Amount_Including_VAT>
</VAT>
</TotalsVAT>
